Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

1.Strong welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

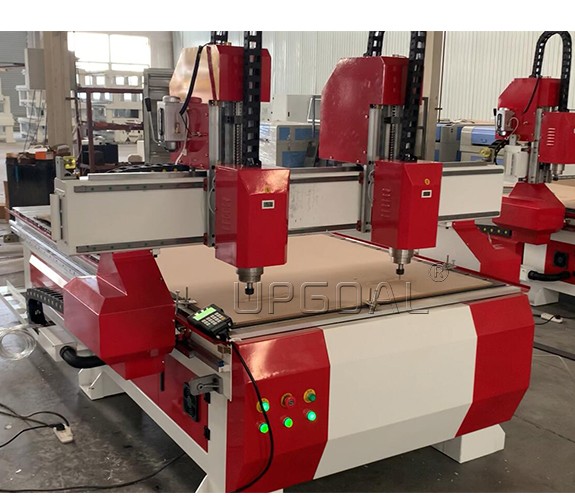

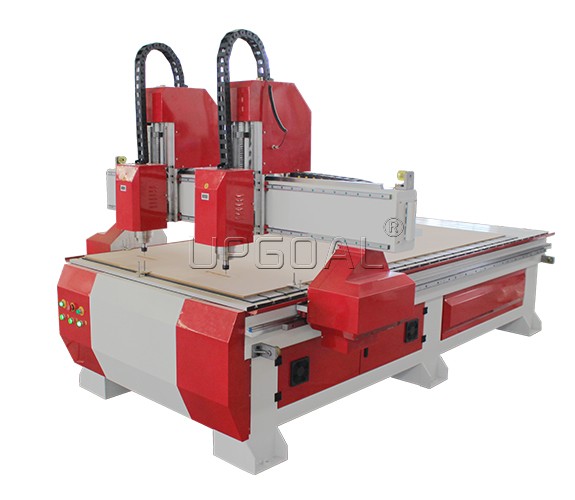

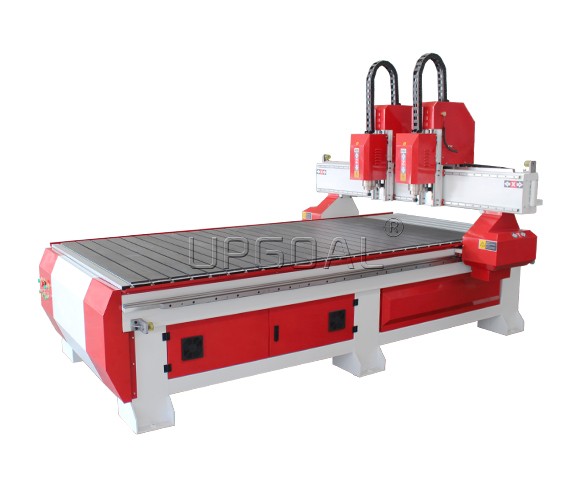

2. Independent double Z-axis, each head can do same work or just one head working, much improving efficiency.Also can do mirror movement/working at the horizontal direction.

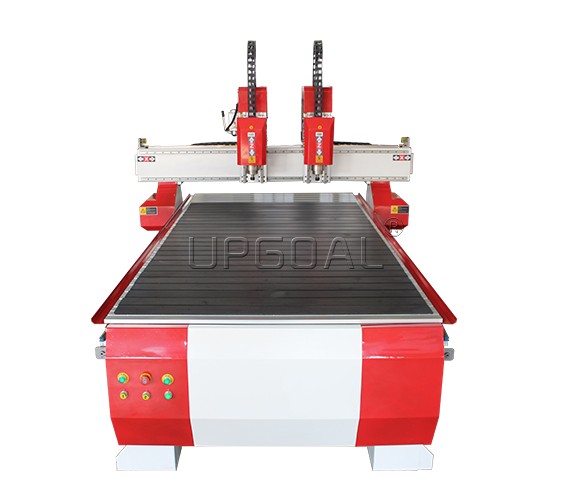

3. Thickness aluminum T slot working table.

4.Each spindle is powerful China Hanqi brand 3.2KW water cooling spindle, which is with stable performance, low noise and high torque, matched with high-performance frequency Inverter.

5. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.
6. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision lead ball screw, high precision and more durable.

7. China famous Chuangwei brand 86BYGH450B steppermotor and Leadshine DMA860Hdriver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

8. DSP( RichAuto, A11E) offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

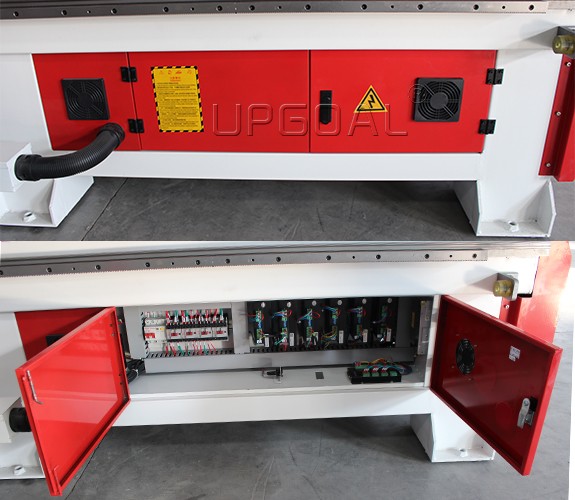

9. Buil-in control cabinet, save the space

11.Semi-auto lubrication system more convenient for maintenance.
10. Auto tools calibration, precision for Z-axis 0 point setting.

12. Dust collector 3.0kw double heads, help to suck dust, milling dust, keeps machine cleaning.

13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

14. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.
